Jute Machinery Catalog — G.D. Industries (Brand: GDI)

Brand: GDI Model: GD 100-01 One Year Warranty

OD Batch Mixer

High-efficiency automated emulsification and mixing unit designed for continuous blending of water and jute batching oil. Engineered with PLC automated control and dedicated tanks to ensure uniform sliver conditioning.

Technical Specification GD 100-01

Capacity	100 Liters (Minimum)
Machine Power Consumption	2.6 kW
Output Per Hour	600 Liters
Control System	PLC Control / Automatic Control
Tanks Included	Water Tank, Oil Tank, Emulsifying Tank & Accessories
Warranty	One Year Warranty

Enquire About GD 100-01

Brand: GDI Model: GD 3000-01 One Year Warranty

Jute Spreader Machine

Opens and combs out extended jute reeds, deploying a uniform blending process on jute material to transform them into an even, continuous sliver with uniform bunching emulsion application.

Draft and lead is more protected, useful, and consistent
Plausibility of optimum fibre infiltration across gill bed
Makes elevated caliber jute suitable for high-speed downstream processing
Supplies high manufacturing capacity for varying yarn numbers

Technical Specification GD 3000-01

Main Motor Power	10 H.P. (1440 RPM)
Attached Dust Collection Unit	5 H.P., 440V, 3 Phase, 1440 RPM
Delivery Speed & Draft	190 FPM • Draft 10
Production Capacity	18,000 Kg per day (at 75% efficiency)
Warranty	One Year Warranty

Enquire About GD 3000-01

Brand: GDI Model: GD 200-02 One Year Warranty

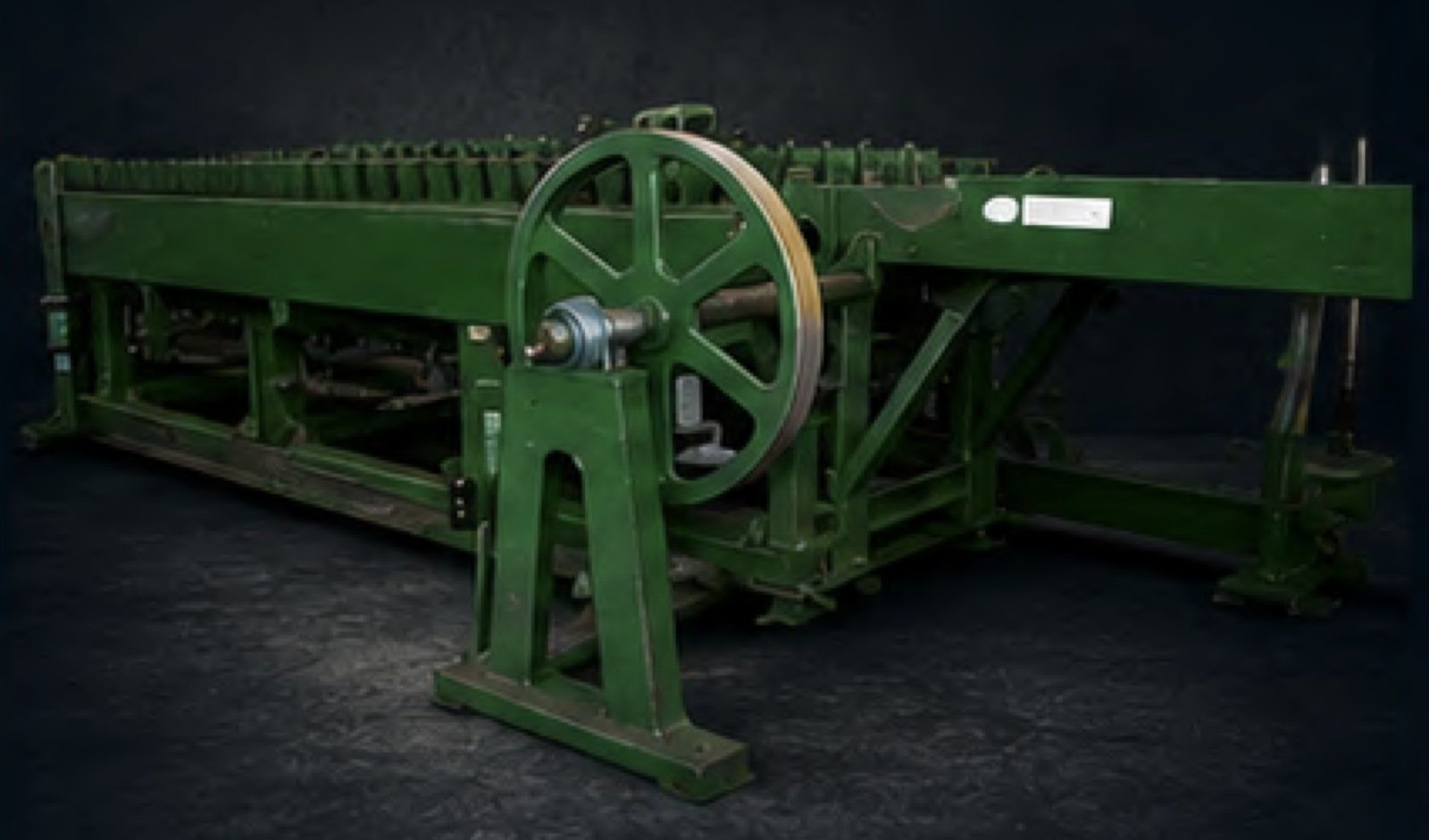

Jute Softner Machine

Heavy-duty multiple pair fluted roller softening machine for breaking the hardness of raw jute morahs and thoroughly impregnating emulsion before carding.

Technical Specification GD 200-02

Quantity of Rollers	24 Pair Fluted Rollers
Drive Motor	10 – 15 kW
Production Capacity	800 kg / Hour
Lubrication & Drive	Heavy-duty industrial gearbox & guarded roller drive
Warranty	One Year Warranty

Enquire About GD 200-02

Brand: GDI Model: GD 400-01 One Year Warranty

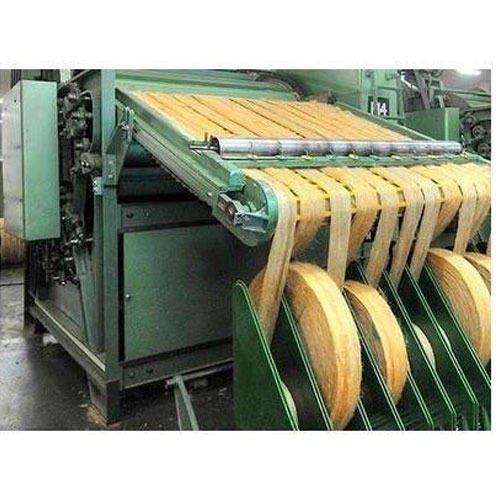

Jute Breaker Card Machine

Robust industrial breaker card machine engineered for primary fibre breakdown, opening, and combing of softened jute reeds into a uniform card sliver.

Complete Technical Specification (23 Parameters) GD 400-01

1 Type	2/3 Pair Half Circular Down Striker
2 Uptake	Positively driven - Detachable
3 Feed	By Spreader Rolls / By Hand
4 Taker-in	Shell Feed with wear resistant Node nip
5 Delivery	Roll Former
6 Working Width	70 inches
7 Sliver Width	5 inches
8 Delivery Rate	240 - 300 ft./min.
9 Clock Length	11.5 yds.
10 Draft Range	11.3 - 21.7 (Hand feed) / 11.9 - 22.88 (Uptake Feed)
11 Main Motor	12 Kw (15HP)
12 Card Clothing	Wooden Staves / Metalag
13 Cylinder Speed	225 rpm
14 Worker & Stripper	2/3 Pairs
15 Worker / Stripper Drive	Chain & Sprocket (MJB 01) / Gear - Pulley & Belt (MJB 02)
16 Cylinder Diameter	48 inches
17 Doffer Diameter	21.34 inches
18 Feeder Diameter	10.6 inches
19 Worker Diameter	10.6 inches
20 Stripper Diameter	10.6 inches
21 Drawing Roller Diameter	4 inches
22 Delivery Roller Diameter	5 inches
23 Conveyor Rollers Bare Diameter	4.5 inches

Enquire About GD 400-01

Brand: GDI Model: GD 600-01 One Year Warranty

Jute Finisher Card Machine

Second-stage carding unit for refining breaker card slivers, further individualizing fibres, cleaning trash, and delivering a clean, uniform sliver for drawing.

Complete Technical Specification (23 Parameters) GD 600-01

1 Type	3 1/2 Pair Half Circular Down Striker / 4 1/2 Pair Half Circular Down Striker
2 Uptake	Positively driven - Detachable
3 Feed	By Roll Former Rolls
4 Delivery	Roll Former
5 Working Width	70 inches
6 Sliver Width	5 inches
7 Delivery Rate	240 - 300 ft./min.
8 Draft Range	10.2 - 19.7
9 Main Motor	7.5 Kw (10HP)
10 Card Clothing	Wooden Staves / Metalag
11 Cylinder Speed	225 rpm
12 Worker & Stripper	3/4 Pairs
13 Feed Stripper	1 No.
14 Worker / Stripper Drive	Chain & Sprocket (MJF 01) / Gear-Pulley & Belt (MJF 02)
15 Cylinder Diameter	48 inches
16 Doffer Diameter	21.3 inches
17 Feeder Diameter	6.4 inches
18 Feed Stripper Diameter	6.4 inches
19 Worker Diameter	10.6 inches
20 Stripper Diameter	10.6 inches
21 Drawing Roller Diameter	4.0 inches
22 Delivery Roller Diameter	5 inches
23 Conveyor Roller Bare Diameter	4.5 inches

Enquire About GD 600-01

Brand: GDI 1st Drawing: GD 700-03 2nd Drawing: GD 800-03 One Year Warranty

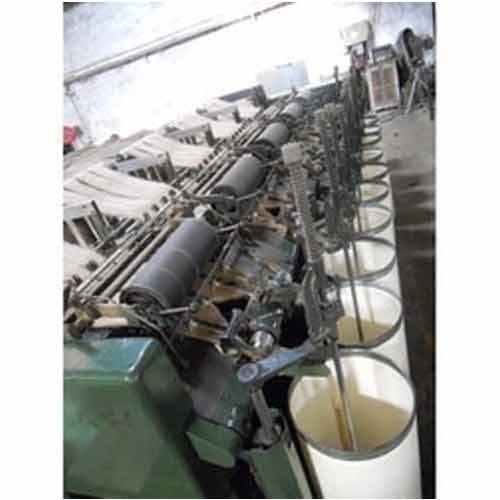

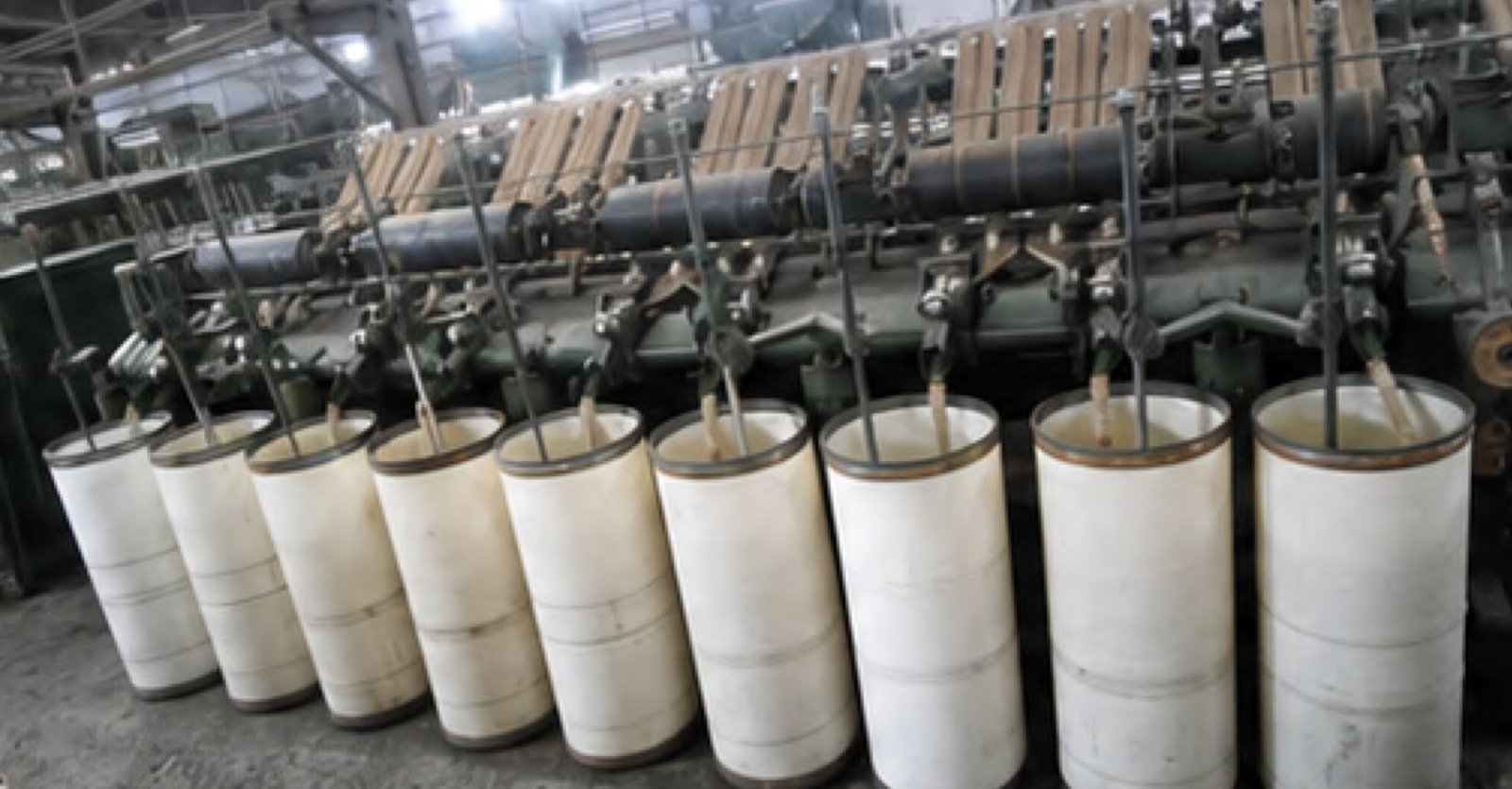

Jute Drawing Machines

High-precision 1st and 2nd drawing frames for drafting, doubling, and parallelizing jute card slivers into consistent, high-uniformity slivers prior to spinning.

Specification Parameter	1st Drawing Machine Model: GD 700-03	2nd Drawing Machine Model: GD 800-03
Heads per Frame	2 / 3 / 4 / 5	3 / 5
Slivers per Head	4	8
Deliveries per Head	2	2
Pitch of Sliver	7.5"	4.5"
Length of Reach	14"	12"
Diameter of Front Roller	2.5"	2 1/4"
Diameter of Back Roller	2 1/4"	2"
Diameter of Pressing Roller	Mack Draw	Mack Draw
Width of Sliver Trap	2"	1 1/4"
Width of Sliver at Feed	5"	2 1/4"
Width of Gills	6"	Through
Doubling on Frame	2 : 1	4 : 1
Draft / Range	3.7 - 4.5 or higher	5.5 - 6.5
Rubber Description (Front & Back)	Revolving	Revolving
Production Capacity	300 kg/hr (approx.)	300 kg/hr (approx.)
Warranty	One Year Warranty	One Year Warranty

Enquire About Drawing Frames

Brand: GDI Model: GD 1100-02 One Year Warranty

Jute Spinning Machine

Precision Engineered. Performance Assured.
State-of-the-art Apron Draft spinning frame with Boxter flyer, built for high spindle speeds, low yarn breakage, and high-tenacity jute yarn production.

Specification Details (20 Parameters) GD 1100-02

Hand of Drive	Both R.H. & L.H.
Type of Frame	Apron Draft
Flyer Type	Boxter
No. of Yarn	8 - 28 lbs/spy
No. of Spindles per Frame	24
Traverse & Diameter of Bobbin	7 1/2" x 3 1/2"
Dead Spindle Diameter	3/4" (ball spring loaded)
Diameter of Bobbin Carrier Tube	7/8"
Diameter of Bottom Roller	2 1/4"
Diameter of Retaining Roller	2 1/4" (20 flutes/inch)
Diameter & Face of Pressing Roller	6 1/8" x 5/8"
Draft Range	Up to 20
Twist Range	Up to 10
Diameter of Cylinder	5 7/8"
Diameter & Type of Wharves	2" Special
Width of Tape	1"
Range of Flyer Speed	3400 - 4000 rpm
Individual Motor Drive Tape & Rev	15 HP, 1440 rpm & Starter
Power Suitability	400/440 volts, 3 Phase, 50 Hz power
Position of Motor	Inside Frame Work
Warranty	One Year Warranty

Enquire About GD 1100-02

Brand: GDI Model: GD 1600-01 One Year Warranty

Cop Winding Machine

Precision cop winding machine designed for spinning mill packaging, producing compact, uniform yarn cops for shuttles with minimal yarn tension variance.

Technical Specification GD 1600-01

No. of Spindles	12 Spindle
Primary Application	Jute Spinning
Operating Side	Single / Double Side
Power Supply	220V / 380V
Electrical Phase & Frequency	Single / Three Phase • 50 / 60 Hz
Warranty	One Year Warranty

Enquire About GD 1600-01

Brand: GDI Model: GD 1500-02 One Year Warranty

Jute Sacking Loom

High-output sacking loom machine engineered for continuous heavy industrial weaving. Also available in S4 A Loom and Hessian Loom configurations.

Technical Specification GD 1500-02

Reed Width	36 cm (Custom configurations available)
Rotation Speed (R.P.M)	150 - 200 RPM
Weft Selection	4 Colors
Number of Heald Frames	8 - 10
Insertion Rate	200 - 400 m/min
Electrical Control	P.L.C Control
Warranty	One Year Warranty

Enquire About GD 1500-02

Ancillary & Mill Systems

Beaming, Loading & Mill Equipment

Complementary industrial machinery manufactured and serviced by G.D. Industries for end-to-end mill operation.

Brand: GDI Single / Double System

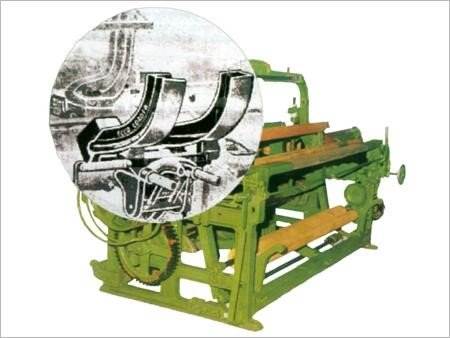

Beaming Machine (Single & Double)

High-speed beam winding for smooth yarn tension across all ends onto weaving beams with uniform density.

Enquire Now

Brand: GDI Continuous Feed

Eco Loader Machine

Automated, steady material feeding system that reduces manual handling and labor fatigue in processing lines.

Enquire Now

Brand: GDI Supply & Repair

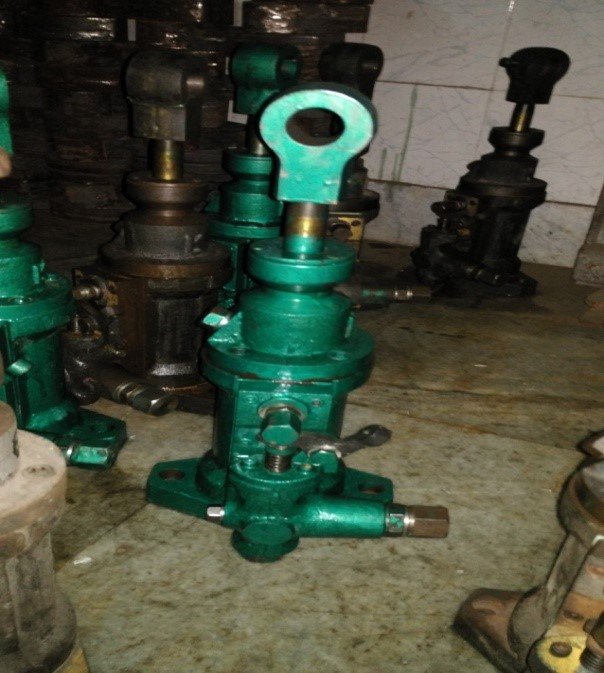

Oil Controller Pump (Also Repair)

Precision fluid metering pumps for oil application on cards and drawing frames, with full factory overhaul services.

Enquire Now

Brand: GDI Energy Efficient

Loom Energy Saver Motor

High-torque, low power consumption industrial motors engineered specifically to reduce power draw on weaving sheds.

Enquire Now

Brand: GDI Heavy Duty

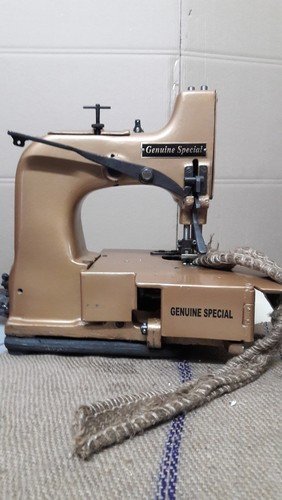

Bag Sewing Machine (Revo / Special)

Continuous high-speed bag closing and sacking stitching machines for finished jute bag packaging lines.

Enquire Now

Brand: GDI GDPW100

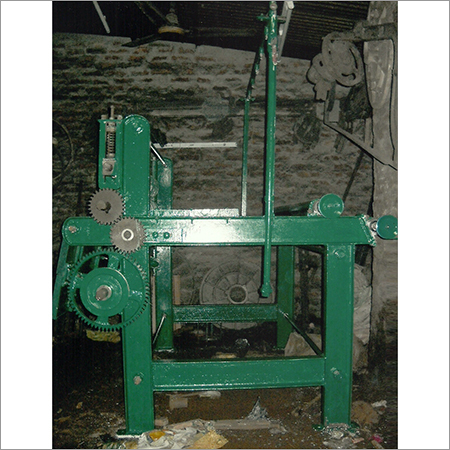

Precision Winding Machine

Manufactured directly by G.D. Industries in Kolkata, delivering accurate bobbin and cone package formation.

Enquire Now

In-House Manufacturing

All Types of Spare Parts

Manufactured to original factory drawings with verified metallurgical hardness and precision tolerances for all machine models.

Drafting

Brass Pin Bars & Drafting Pins

Calibrated brass pin bars with high-tensile drafting pins for all standard drawing frame fallers.

Enquire

Spinning

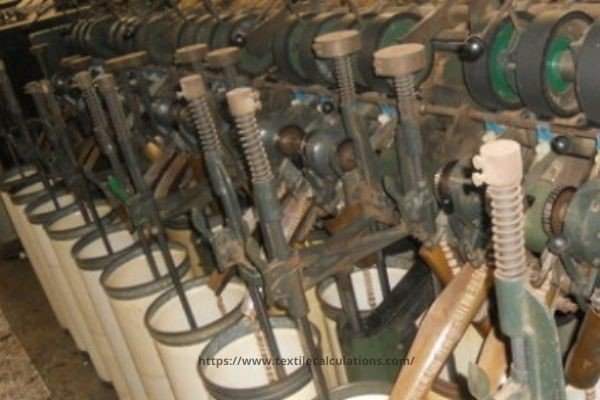

Spindle & Flyer Assemblies

Balanced spindles, dead spindles with ball spring loading, and Boxter flyers for GD 1100-02 frames.

Enquire

Drive

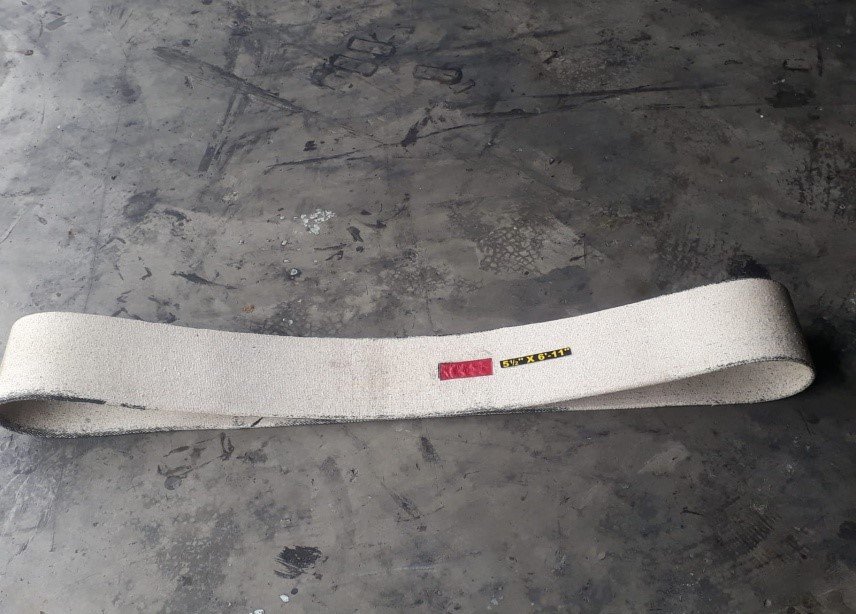

Textile Apron Belts

Seamless synthetic apron belts (5½" × 6-11" and custom sizes) providing high grip and stretch resistance.

Enquire

Precision

Precision Spindles & Cylinders

Machined alloy steel cylinders, doffer shafts, and delivery rollers ground to exact concentricity.

Enquire

Cast Iron

Gearboxes & Drive Components

Heavy-duty cast iron gearboxes, sprockets, bevel gears, and drive pulleys for looms and cards.

Enquire

Drafting

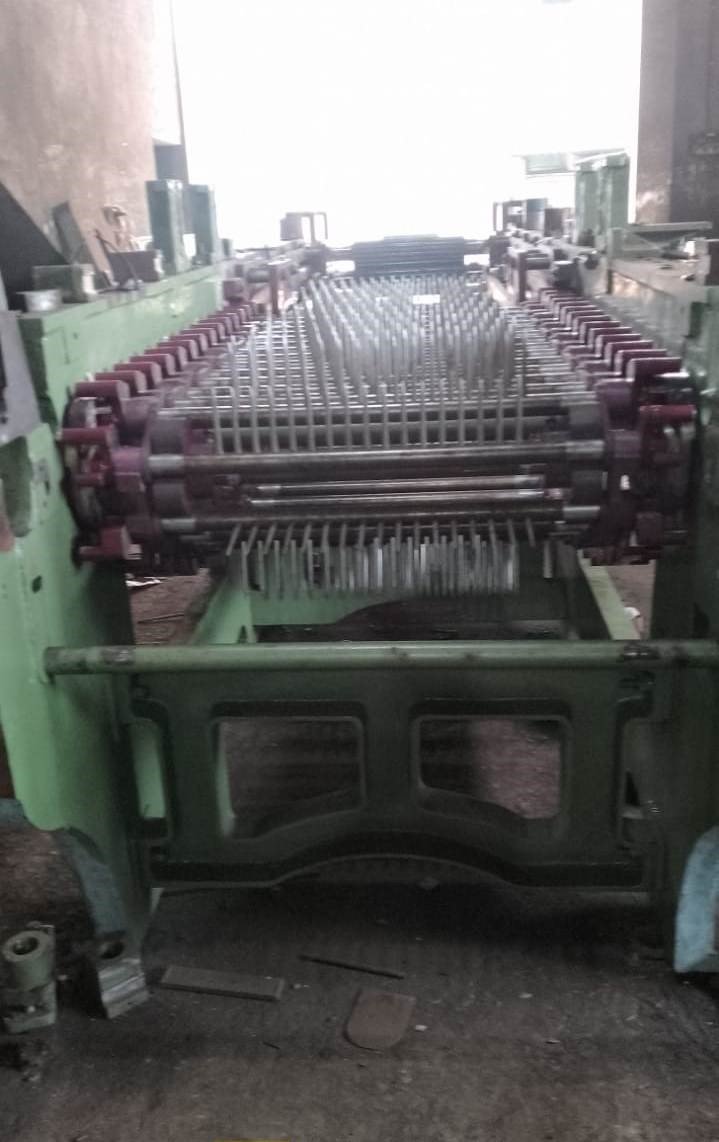

Drafting & Pin Rollers

Fluted drawing rollers, pressing rollers, and pin rollers ensuring uniform sliver draft control.

Enquire
